Product Description

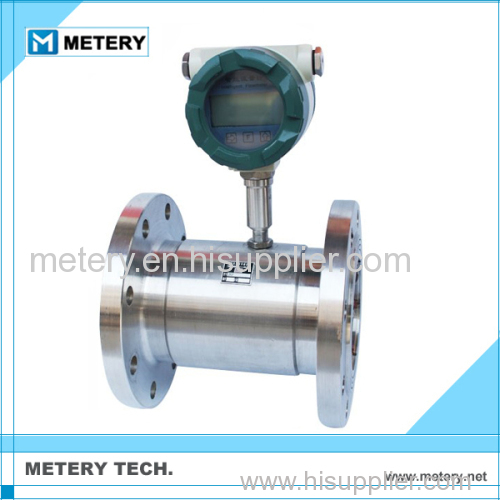

turbine flowmeter

turbine flow transducer adapts to measure the liquid rate and total flowrate of low viscosity,it can be widely used in the fields of petrol,chemical industry,metallurgy,scientific research for measuring or control,several putput and display methods can be selected.

1>high accuracy with 0.2%,0.5%,1%

2>wearable tungsten carbonized shaft and bearing,suitable for low viscosity Clean medium

3>erode-resistant be the same with sea water,ammonia,acetometer,etc.

4>with 4-20mA output or pulse output,LCD dispaly,totalizer

5>power supply:2220VAC,24VDC,or battery supply

6>flow range is from 0.01m3/h to 800m3/h.

Function:

1.Good performance in high pressure and corrosion resistance,Low initiating / incipient flow.

2.Outstanding accuracy and longer life at an affordable price.

3.Wide operating temperature which is between -25°C to 55°C.

4.Simple and durable construction.

5.Readout devices for flow rate indication, flow total, flow control.

6.Applicable to industrial automation, automatic control system, hotels and restraunts, pressure vessel industries.

communication type:

1.PT pulse type:Three line ,24VDC, Output flow pulse ,can connect PLC and  Flow Totalizer

2.CT  Electric type:two line,24VDC, Output standard 4-20Ma current

3.BT  Battery-powered type: Display instantaneous flow and cumulative flow, No output signal

4.IT  Intelligent type:220VDC/24VAC,4-20Ma current/pulse/RS485, Display instantaneous flow and cumulative flow

Our Services

           3. For on-site services not arising from manufacturing quality, we shall charge a certain service fee at our discretion based on actual charges incurred such as travel expense;

         4. We provide paid repair services for meter damages not arising from manufacturing quality issues or meter damages not within the scope of warranty.

FAQ

What are Flowmeters?
A flowmeter is an instrument used to measure linear, nonlinear, mass or volumetric flow rate of a liquid or a gas.

Selecting a Flow Meter
The basis of good flowmeter selection is a clear understanding of the requirements of the particular application. Therefore, time should be invested in fully evaluating the nature of the process fluid and of the overall installation.

Here are some key questions which need to answered before selecting a flowmeter:

• What is the fluid being measured by the flowmeter or flowmeters (air,water,etc…)?

• Do you require rate measurement and/or totalization from the flow meter?

• If the liquid is not water, what viscosity is the liquid?

• Is the fluid clean?

• Do you require a local display on the flow meter or do you need an electronic signal output?

• What is the minimum and maximum flowrate for the flow meter?

• What is the minimum and maximum process pressure?

• What is the minimum and maximum process temperature?

• Is the fluid chemically compatible with the flowmeter wetted parts?

• If this is a process application, what is the size of the pipe?

•
