Product Description

Features:

• Accuracy can reach ±1%

• Four rows of characters display instantaneous flow rate, flow velocity, the cumulative flow, signal state, etc

• Built-in data recorder, can record dates, cumulative flow, signal condition,

• working time, etc

• OCT output positive, negative, cumulative net pulse signal and the frequency signal (1-9999Hz optional)

• RS232 interface is used to glue network detection or export recorded data

• Suitable for all variable sizes of pipes' flow metering

• The velocity measuring range 0.01 ~ + 32 m/s

• Suitable for steel, stainless steel, cast iron, PVC, FRP, etc. uniform and compact of pipeline

• Upstream of straight pipe section should satisfy 10D, downstream 5D, 30D to the pump outlet (D refers to the pipe diameter)

• Built-in Ni-MH rechargeable battery can work continuously more than 10 hours

• Small size (220×92×32mm), portable weight (538g)

Optional sensors:

Standard small stents sensor (magnetic)                Standard medium stents sensor (magnetic)

Applicable caliber DN15-100mm                                   Applicable caliber DN50-700mm

Fluid temperature ≤110°C                                              Fluid temperature ≤110°C

Overall dimension 200×25×25mm                                 Overall dimension 280×40×40 (2Ps)

Handle length 100mm



Standard large sensor                                               Standard large sensor (magnetic)

Applicable caliber DN300-600mm                                 Applicable caliber DN50-700mm

Fluid temperature ≤110°C                                             Fluid temperature ≤110°C

Overall dimension 80×70×55mm                                  Overall dimension 60×45×45mm

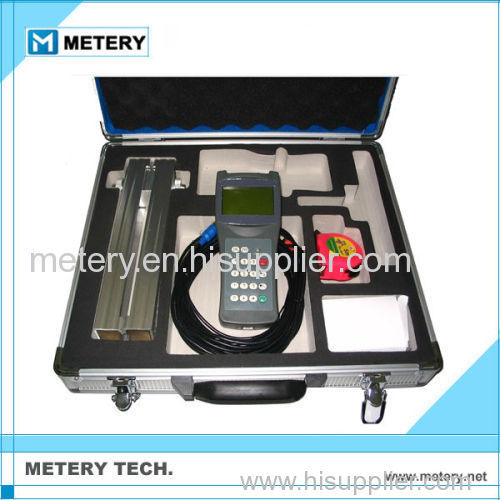

Standard configurations

Aluminum alloy protection case (470×380×110mm)

The host

Standard medium sensor

Signal cable 5m×2 (10m×2 optional)









FAQ



What are Flowmeters? A flowmeter is an instrument used to measure linear, nonlinear, mass or volumetric flow rate of a liquid or a gas.
Selecting a Flow Meter The basis of good flowmeter selection is a clear understanding of the requirements of the particular application. Therefore, time should be invested in fully evaluating the nature of the process fluid and of the overall installation.

Here are some key questions which need to answered before selecting a flowmeter:

• What is the fluid being measured by the flowmeter or flowmeters (air,water,etc…)?

• Do you require rate measurement and/or totalization from the flow meter?

• If the liquid is not water, what viscosity is the liquid?

• Is the fluid clean?

• Do you require a local display on the flow meter or do you need an electronic signal output?

• What is the minimum and maximum flowrate for the flow meter?

• What is the minimum and maximum process pressure?

• What is the minimum and maximum process temperature?

• Is the fluid chemically compatible with the flowmeter wetted parts?

• If this is a process application, what is the size of the pipe?
